Solar Power: So Much Fun (Part II)

Three years ago (November 20, 2012) I did a blog on my first foray into the world of solar energy. Since then, I’ve added and upgraded my system a bit. I’ve taken a break from traveling and writing about kit homes, so I thought I’d do a blog today on my new “solar system.”

If you have any questions or insights, please leave a comment below!

To read about Sears Homes, click here.

Want to read my prior blog on solar energy? Here’s the link.

*

Solar

Three years ago, I installed my first "solar system" on my little back yard shed.

*

fff

I purchased this "Thunderbolt" solar panel kit from Harbor Freight. Thunderbolt strikes me as a silly name, but it's a good solid product. Each panel produces 15 watts.

*

This Spring, we had a new roof put on the house and shed, and after we had that work done, I couldnt bear to put those solar panels back on the pretty new roof.

This Spring, we had a new roof put on the house and shed, and after we had that work done, I couldn't bear to put those solar panels back on the pretty new roof.

*

Instead, I decided maybe it was time to upgrade a little bit.

Instead, I decided maybe it was time to upgrade a little bit. Pre-new roof, I had two sets of three panels atop the little shed roof. Each set of three produced 45 watts. The Thunderbolt solar panels were amorphous thin-film panels (older technology) while the newer panel (shown here on the side) is a crystalline panel which produces 100-watts with a single panel.

*

fffee

And it looks snappy, too. The panel is manufactured by Renogy.

*

I mounted the solar panel to the wall using a 360-degree flat-screen TV mount. It was on sale at Amazon for $19 and was exactly what I needed. This model has a feature (probably undesirable to many) that after the arm is pivoted where you want it, it can be tightened into place so it never moves again.

I mounted the solar panel to the wall using a 360-degree flat-screen TV mount. It was on sale at Amazon for $19 and was exactly what I needed. This model has a feature (probably undesirable to many) that after the arm is pivoted into position, it can be tightened into place so it never moves again.

*

And mounting it on the side means I didnt need to drill fresh holes in that expensive new roof.

And mounting it on the side means I didn't need to drill fresh holes in that expensive new roof.

*

Ive now got three 12-volt deep cycle marine batteries.

Inside, there were some upgrades too. I've now got three 12-volt deep cycle marine batteries. The battery on the floor is the one I use for my trolling motor, when I go out on the lake.

*

Prior to last week, I was using this MPPT solar charge controller

Prior to last week, I was using this MPPT solar charge controller. This little jewel cost $130 on Amazon and lasted only five months before it died. And it didn't die easy. It took out one of my digital meters when it went. Plus, it didn't just stop charging the battery; it was actually draining the batteries down to 4 volts. MPPT stands for Maximum Power Point Tracking.

*

You can read more about MPPT by clicking here. It’s a webpage unto itself.

*

This was

Shown above is the PWM (pulse width modulation) solar charge controller than came with the 100-watt Renogy panel. We'll see how it does. It's the dirt-poor cousin of the MPPT solar charge controller. If it lasts more than five months, it'll be my new hero.

*

Upgrade

With those three batteries, I was able to upgrade the inverter a bit, too. Shown above is a 1600-watt inverter. The green display shows the current charge on the battery. The now-dead meter above showed the incoming voltage on the solar panels.

*

And I added a few lights, too.

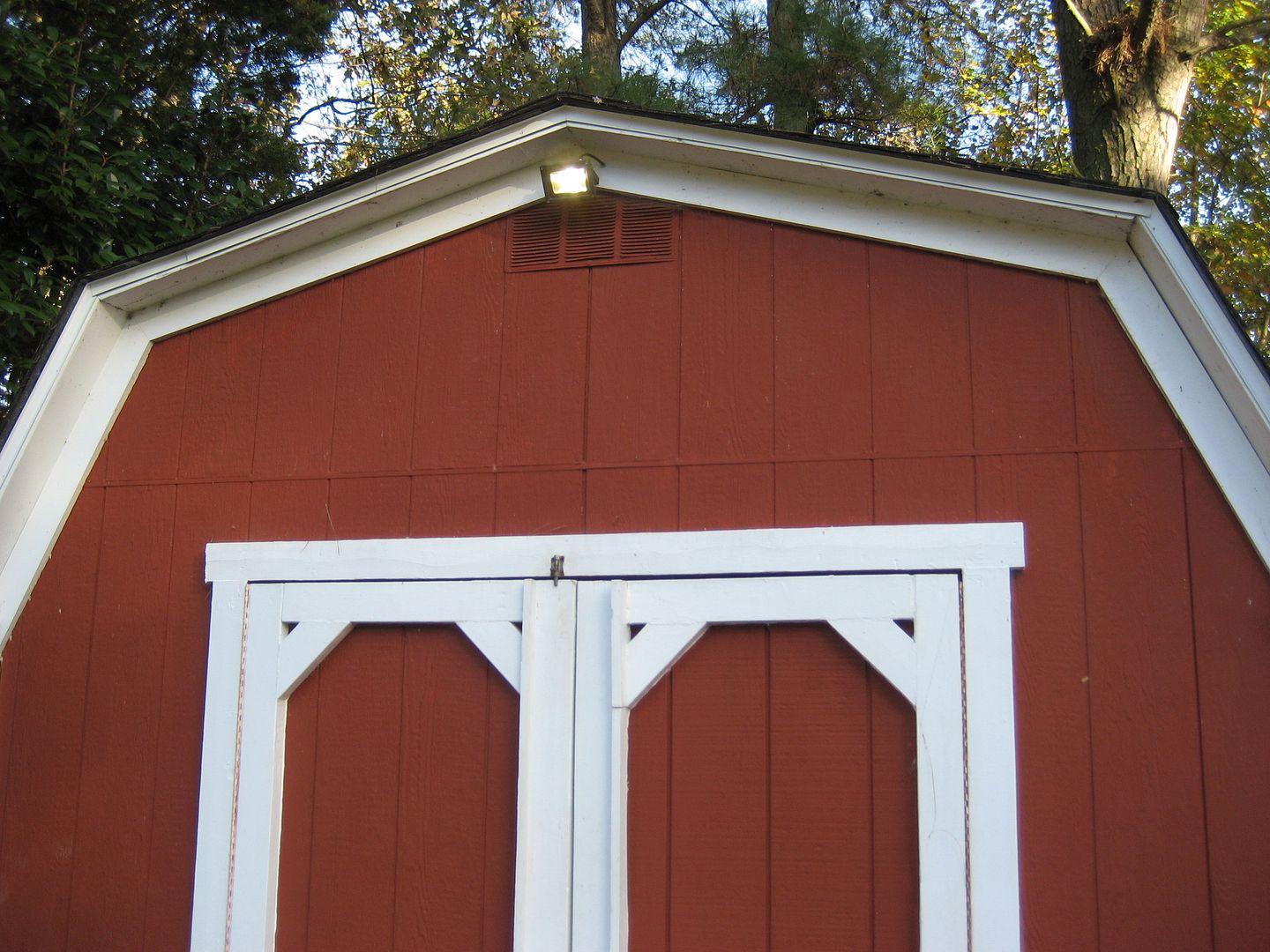

And I added a few lights, too. Inside, I have four LED 12-volt lights. I mounted this one outside. It's also available at Amazon for the low, low price of $11.97 (or was). This small fixture puts out a surprising amount of light.

*

The old solar set-up was a lot of fun, and it lives on at Miltons house (my buddy and next-door neighbor). Three years later, its still performing like a champ.

The old solar set-up was a lot of fun, and it lives on at Milton's house (my buddy and next-door neighbor). Three years later, it's still performing like a champ.

*
